Aquaglide Anvil

Add serious thrills with this large corner jump water park feature!

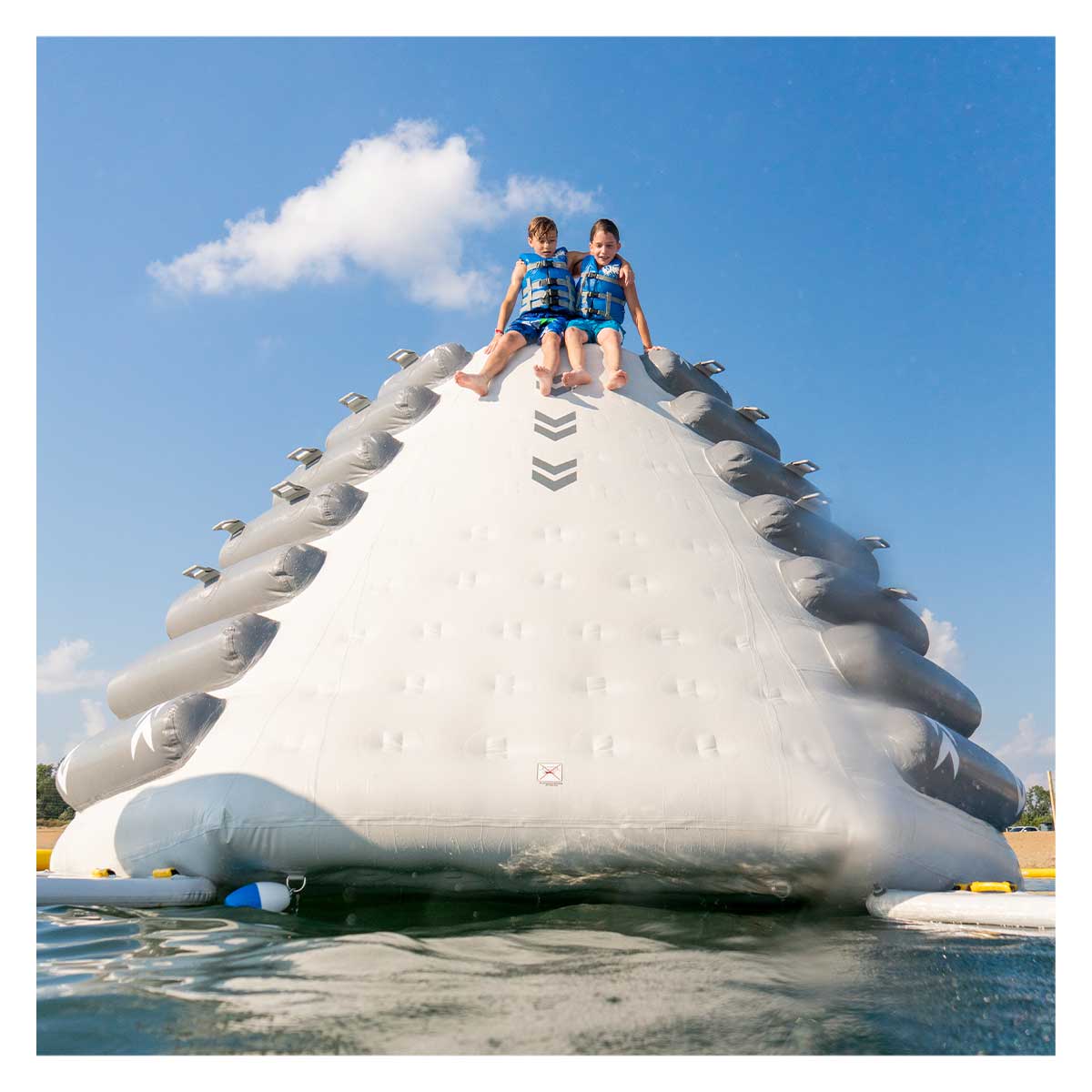

Two novice up-down climbing routes utilize Tritex material for traction and cooling effects. Once on top, users choose from three jumping platforms: Two located at 8 feet (2.44 m), and one at a towering 10 feet tall (3.05 m). The main platform features a high-velocity chute slide option for a (slightly) milder descent than a full standing jump.

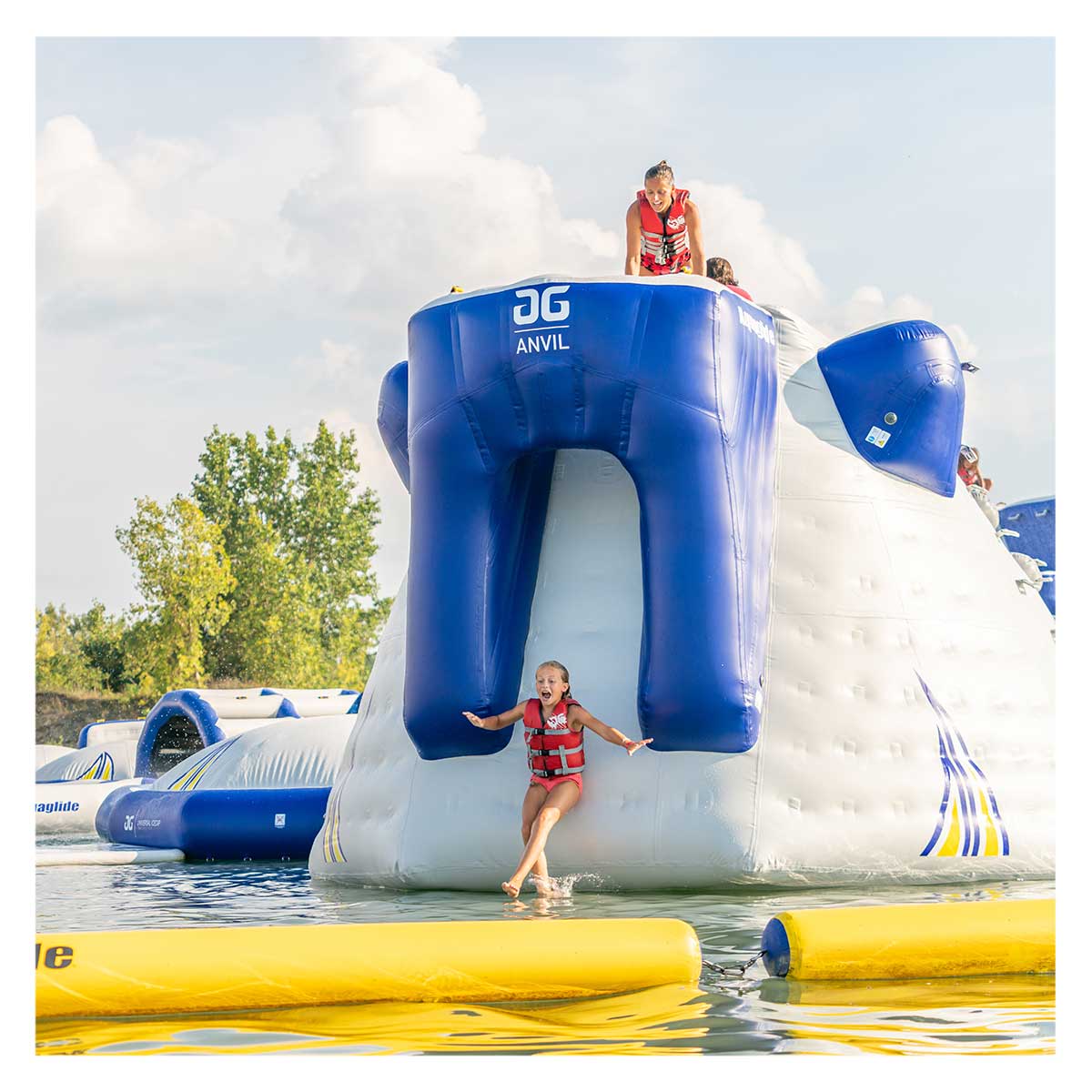

The inside corner offers an exciting 8-foot (2.44m) drop slide, while avid climbers test their skills on two advanced lines ascending from the water on the outside corners.

Ideally positioned as a corner on Aquaglide Ring or Serpentine parks, this item can also be used as a stand-alone feature for parties and lakefront fun. Connects on one or two sides using the patented Aquaglide Interlock connection system.

Anvil Waterpark Features

• Best for: jumping and climbing, transit to other features
• Capacity: (8) Adults / (8) Children
• Dimensions: 15' L x 15' W x 10' H (457cm x 457cm x 305cm)
• Minimum Water Depth: 8 Feet (2.43M)
• Includes: Storage Wrap, Repair Kit
• Not Included: Anchor Weights, Mooring Lines, Inflation Pump

Waterpark Construction

• I-Beam: Rugged welded I-band construction with 3-layer seams.
• Double I-Beam: Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
• Duratex Cx3: Premium commercial-grade material optimized for durability, weld strength and UV resistance.
• Tritex: Uniquely textured version of our Duratex material adding grip and cooling attributes.
• Interlock 5: 2 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
• Halkey-Roberts valves: With tamper-proof cap for quick, effective inflation/ deflation.
• PRV: Pressure relief valve to help protect against catastrophic over-inflation.
• TRiB Chamber Gauge: Solar powered gauge that allows for continual monitoring of air pressure at a glance.

Key User Activities

• Climb: Numerous, integrated novice and advanced climbing lines.
• Slide: Features high-velocity chute-slide and drop slide features.
• Jump: Exhilarating dedicated jump stations at various heights add jaw-dropping excitement.
• Corner: Functions as a critical direction change in the park layout.
• Multi-level: Multi-level jump stations accommodate more users at once.
• Obstacle: Presents an obstacle challenge which adds to the fun.
• Boarding: Provides easy boarding access from the water with integrated footsteps on advanced climb lines.

Technical Specifications

• Max Weight:1600 lbs (726 kg)

• Material: 0.90 mm / 31 oz Cx3 PVC
• Minimum Distance from Shore: 10’ (3.0 m)
• Minimum Required Total Anchor Weight: 13,200 lbs (6000 kg)
• Anchor Rings: 6
• Accessory Attachment D-rings: 5 each, on 2 sides

Product Notes

Weight Recommendation

Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.

Disclaimer

The safety of our customers and their guests is our highest priority. Careful thought goes into the design of our aquapark components, connection points and configurations to assure maximum safety and enjoyment. Consequently, Aquaglide Lakefront and

Aquapark products are not authorized for use in combination with products or attachments from any other manufacturer. Aquaglide product combinations must be authorized or approved in advance by the manufacturer. Use of Aquaglide products in combination with products from other manufacturer and/or product arrangements not approved by Aquaglide may result in increased risk of entrapment, injury, or death.
