Aquaglide El Jefe TR

El Jefe TR: The king of aquapark towers.

Best for Climbing, sliding, and jumping to the max!

Works with all Aquaglide Aquapark Series, or as a standalone feature.

Stretching 50 feet high, El Jefe towers over other aquapark features and sets a new benchmark for maximum excitement. Giant entry climbing wall leads to two breathtaking jump stations, or an exhilarating slide with kicker exit. Adrenaline junkies will come rushing back to do it again, and again!

El Jefe includes an integrated Trickler Pocket to enable optional slide irrigation for cooler, slipperier sliding and even more fun. Jump station access is controlled by staff with adjustable gates. Two shaded splash caves at water-level use meridian mesh to keep guests cool and the mesh clean. El Jefe is built in 3 segments for easier handling. Multiple entry points allow El Jefe to serve as a massive standalone feature or integrate into any park in up to 3 places using Interlock 5-Ring connections.

El Jefe Trickler Kit sold separately.

Construction & Assembly

• Double I-Beam: Extra-reinforced, welded double I-Beam construction with 3-layer seams
• Tubular: Integrates welded structural tube construction with 3-layer seams.
• Duratex Cx3: Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
• Tritex Cx3: Uniquely textured version of our Duratex material adding grip and cooling attributes.
• Interlock 5: 3 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
• Halkey-Roberts valves: With tamper-proof cap for quick, effective inflation/ deflation.
• PRV: Pressure relief valves to help protect against catastrophic over-inflation.

User Features

• Trickler Ready: Built-in pockets and attachments for optional slide-face irrigation system.

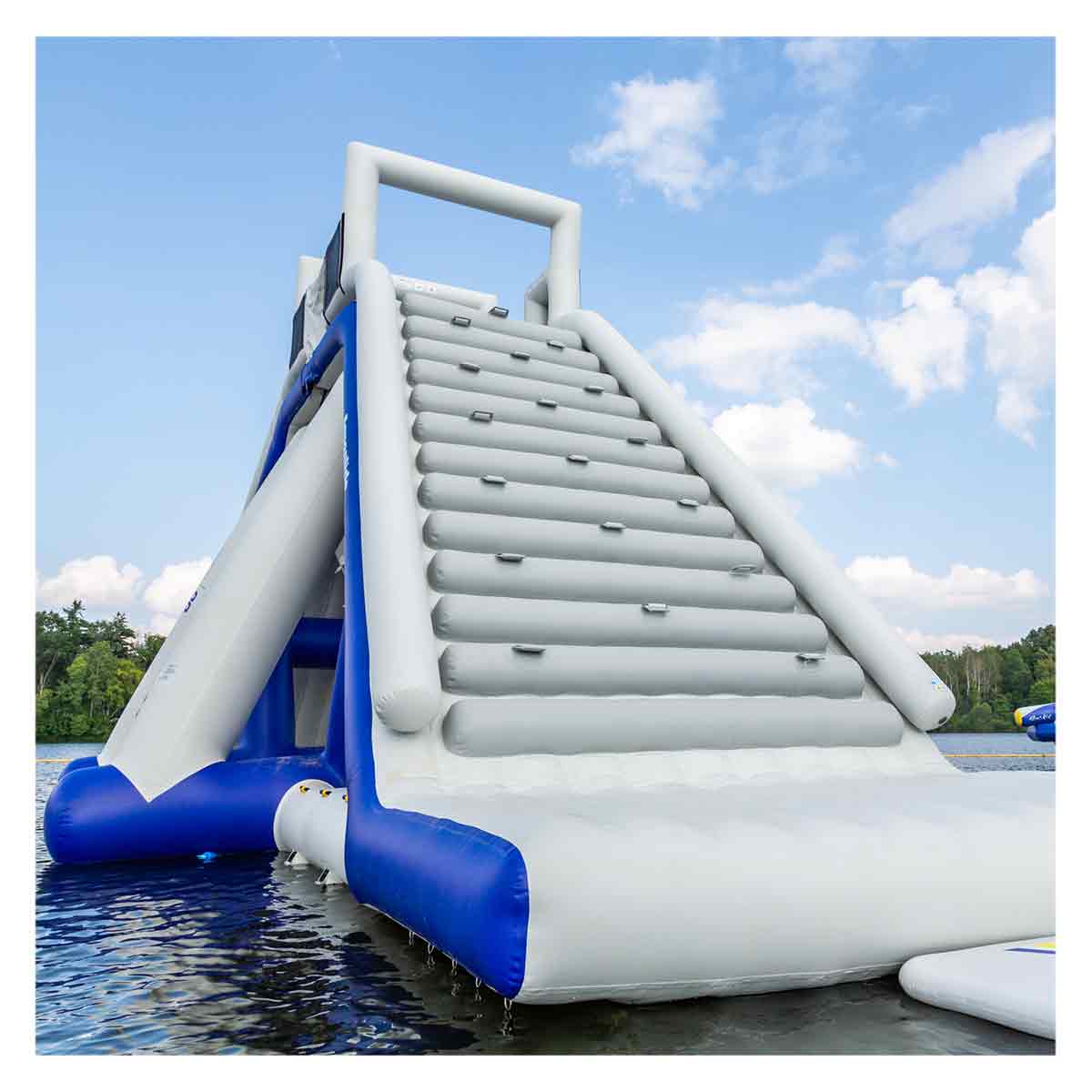

• Climb: Integrated novice climbing wall.
• Jump: 2 dedicated jump stations at over 4.73m (15.5 feet) for heart-stopping excitement.

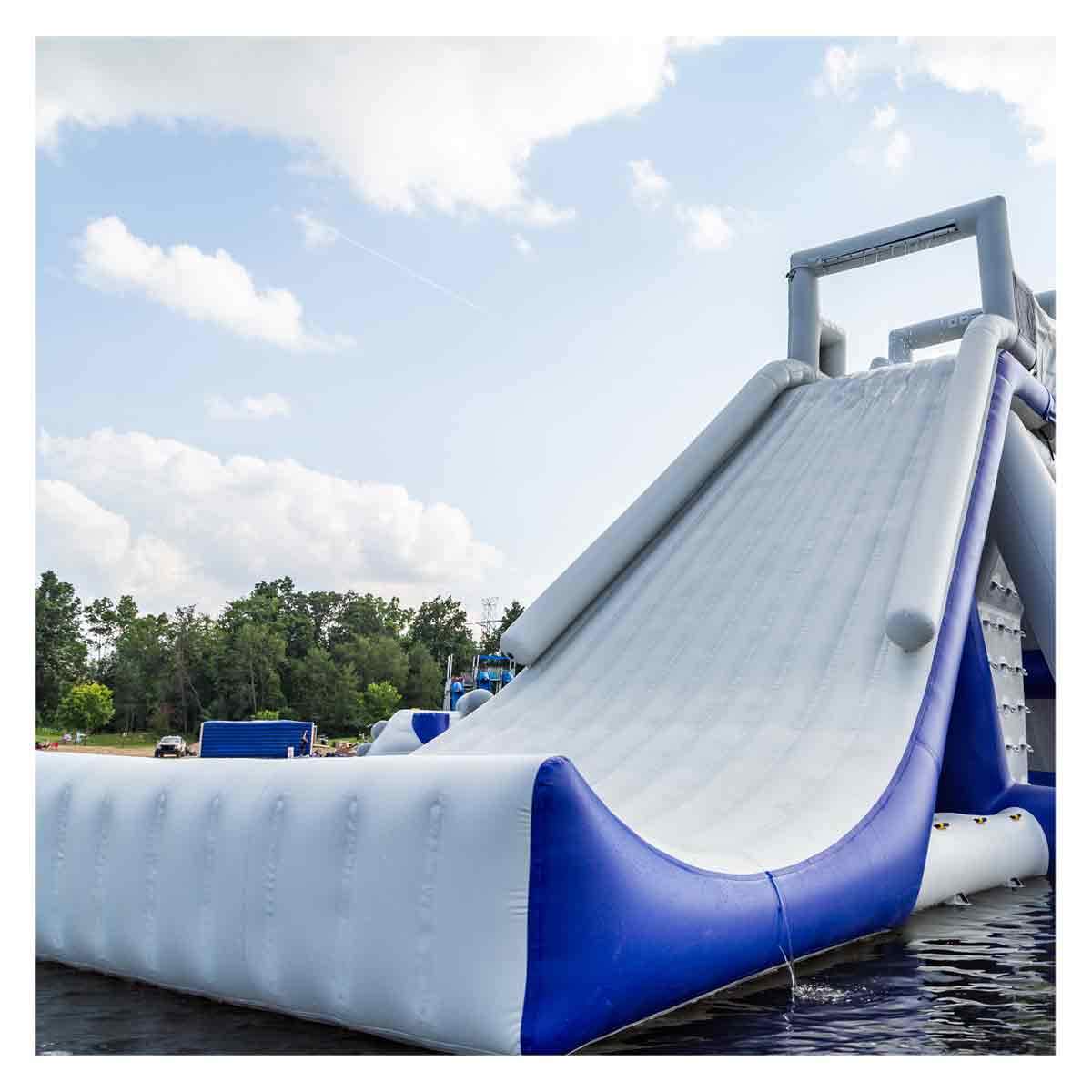

• Slide: Features a huge slide with thrilling kicker feature for maximum enjoyment.
• Cave: Adds interest with two shaded cave areas.
• Multi-level: Diverse multi-level play accommodates more users.
• Splash: Mesh floor provides cooling and excitement.
• Meridian Mesh: Uniquely configured to reduce cleaning requirements.
• Shade: Adds a covered shade feature where users can rest or gather out of the sun.

Technical Specifications

• Weight Rating: 2,400 lbs (1,089 kg)
• Rider Capacity: 12 Adults / 12 Children
• Product Weight: 1415.4 lb. (642 kg) *Shipped in 3 boxes
• Material: 0.90 mm / 31 oz Cx3 Duratex and Tritex
• Dimensions: 50’-5” L (1,536 cm) x 20’ W (610 cm) x 19’-10” H (603 cm).
• Minimum Required Water Depth: 10’ 7” (3.27 m)
• Minimum Distance from Shore: 15’ (4.5 m)
• Minimum Required Total Anchor Weight: 17,600 lb. (8000 kg)
• Anchor Rings: 8
• Accessory Attachment D-rings: 5 each on 3 sides.
• Included: EL Jefe Aquapark Tower and Repair Kit.
• Not Included: Trickler Kit, Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump

Note: Anchor weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.

Warranty

3-year limited warranty against any manufacturing defects.
