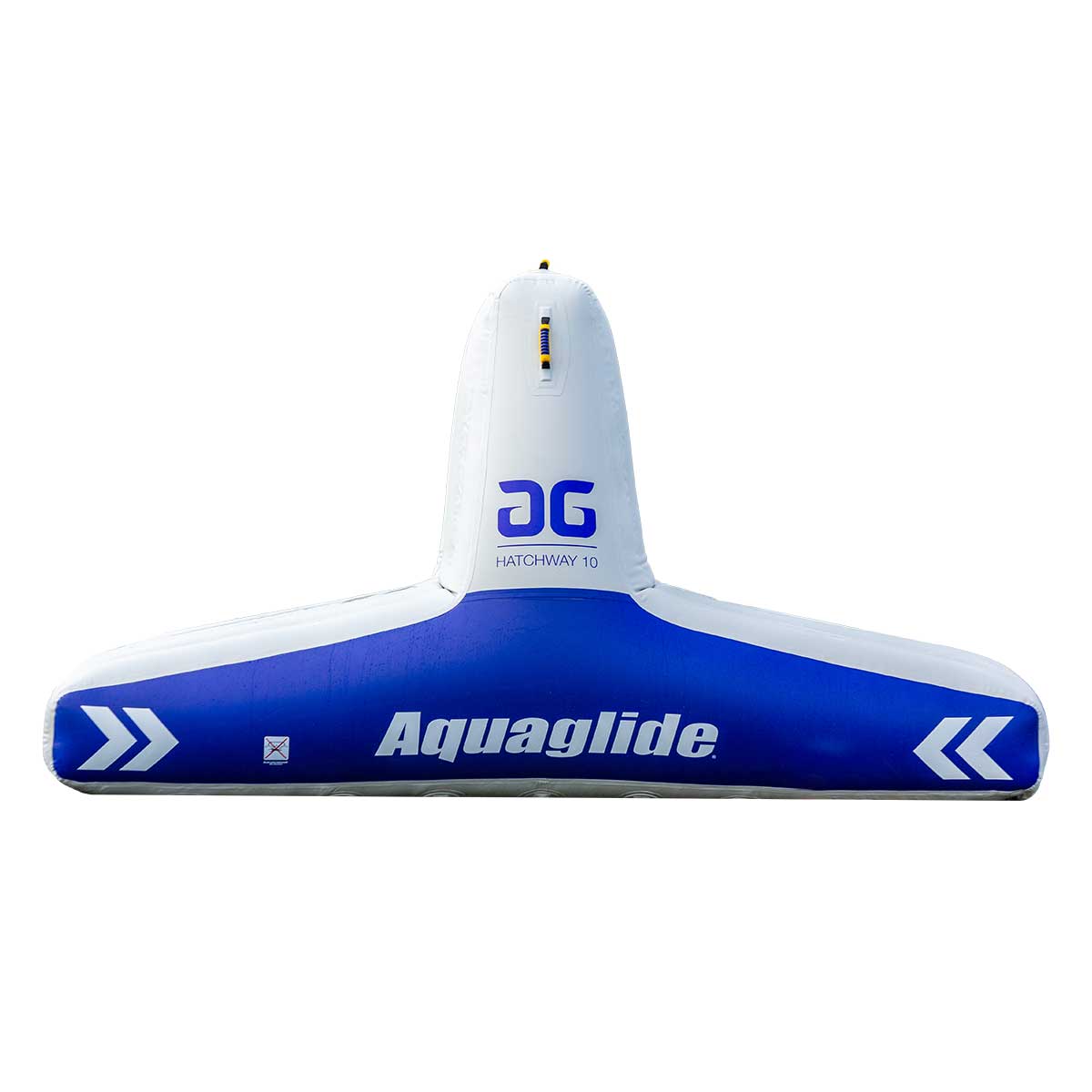

Aquaglide Hatchway 10

TRACK FEATURE

Best for sliding or balance obstacle challenge in a 10-foot format.
Works with all Aquaglide Aquapark Series or as a standalone feature.

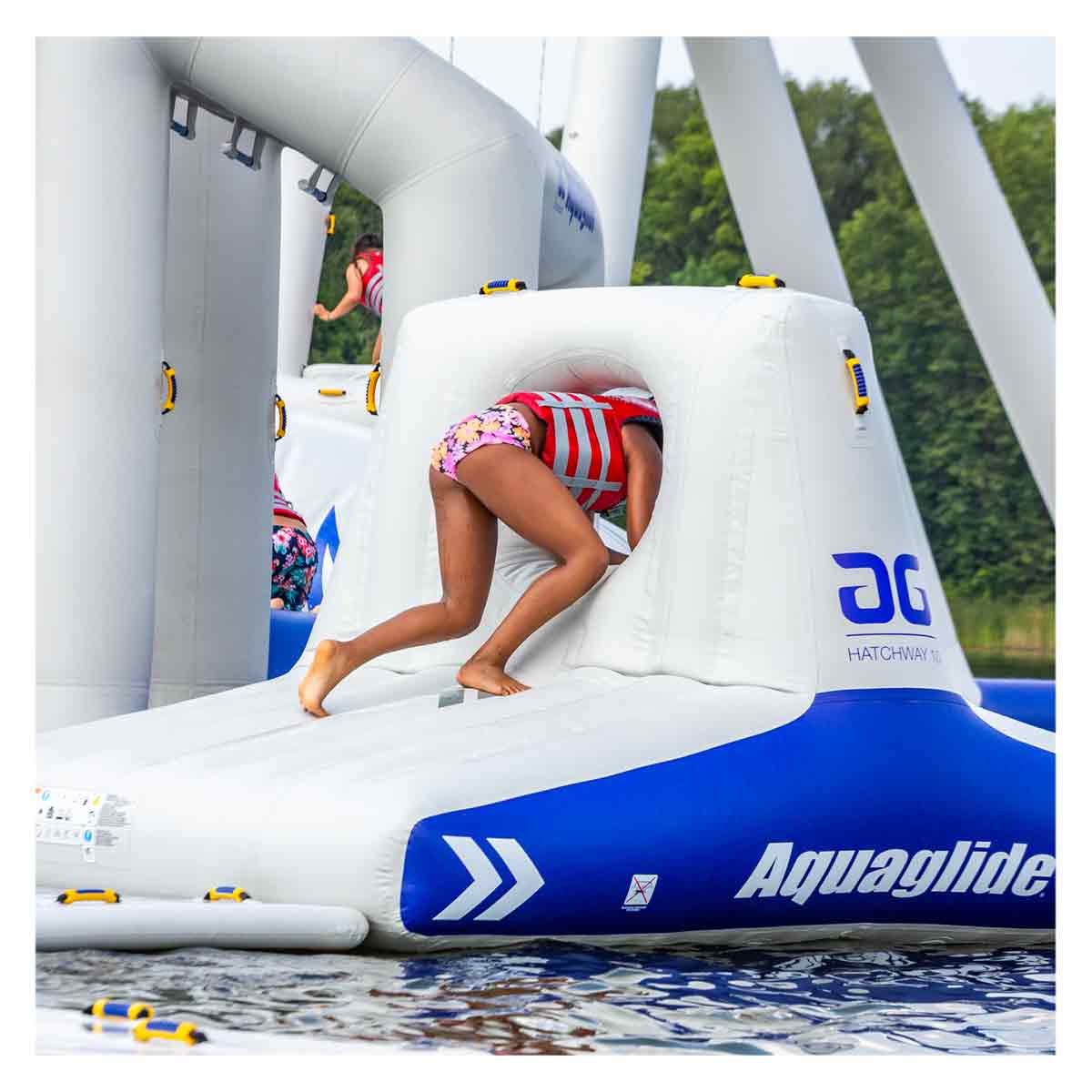

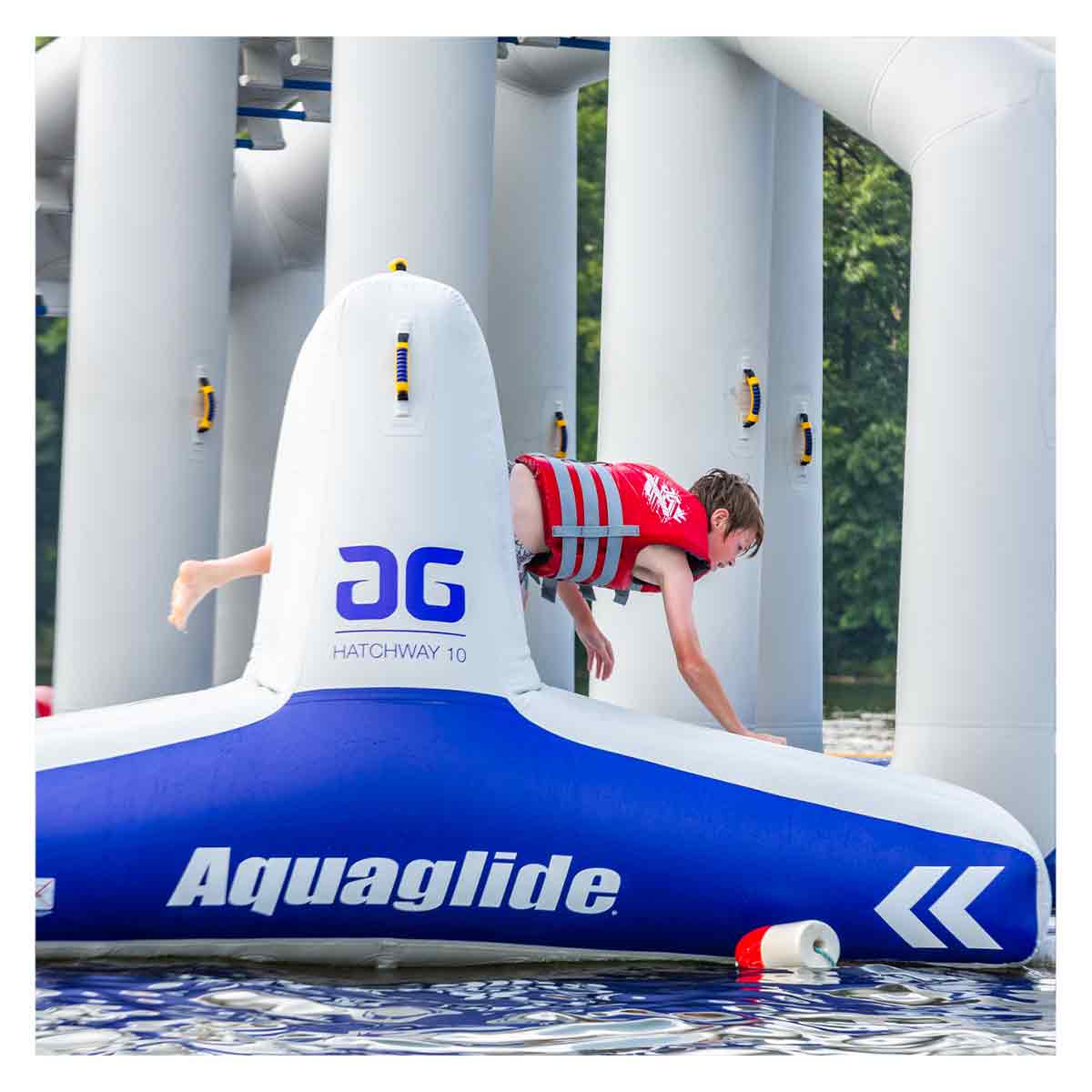

Multiple pathways through, over or around this obstacle make Hatchway a unique and interesting challenge. While more thoughtful users may choose to tiptoe around the outside, the quick and nimble are more likely to slide through or hurdle over the hatchway wall. Either way, Hatchway 10 promotes continuous play as part of an aquapark track run, connecting to other Aquaglide features on 4 sides using the Interlock D-Ring system.

Aquapark Construction

• Double I-Beam: Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
• Duratex Cx3: Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
• Interlock 5: 4 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
• Halkey-Roberts valves: With tamper-proof cap for quick, effective inflation/ deflation.
• PRV: Pressure relief valve to help protect against catastrophic over-inflation.

User Features

• Obstacle: The Hatchway itself presents an obstacle challenge with multiple solutions: over, around or through.
• Slide: Part of the challenge and part of the fun. Integrates a unique sliding entry/ exit feature for maximum fun.
• Balance: Offers a challenging balance element to keep users on their toes.

Technical Specifications

• Max Weight: 400 lb. (181 kg) max weight.
• Capacity: 2 Adults / 2 Children
• Weight: 105.8 lb. (48 kg)
• Material: 0.90 mm / 31 oz Cx3
• Dimensions: 10’-0” L (305 cm) x 6’-6” W (198 cm) x 5’-4” H (160 cm).
• Minimum Required Water Depth: 5’ 7 (1.70 m)
• Minimum Distance from Shore: 10’ (3.0 m)
• Minimum Required Total Anchor Weight: 4,400 lb. (2,000 kg)
• Anchor Rings: 4
• Accessory Attachment D-rings: 5 each on 4 sides.
• Included: Hatchway 10, cover, repair kit.
• Not Included: Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump.

Note: Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.

Warranty

3-year limited against any manufacturing defects.
