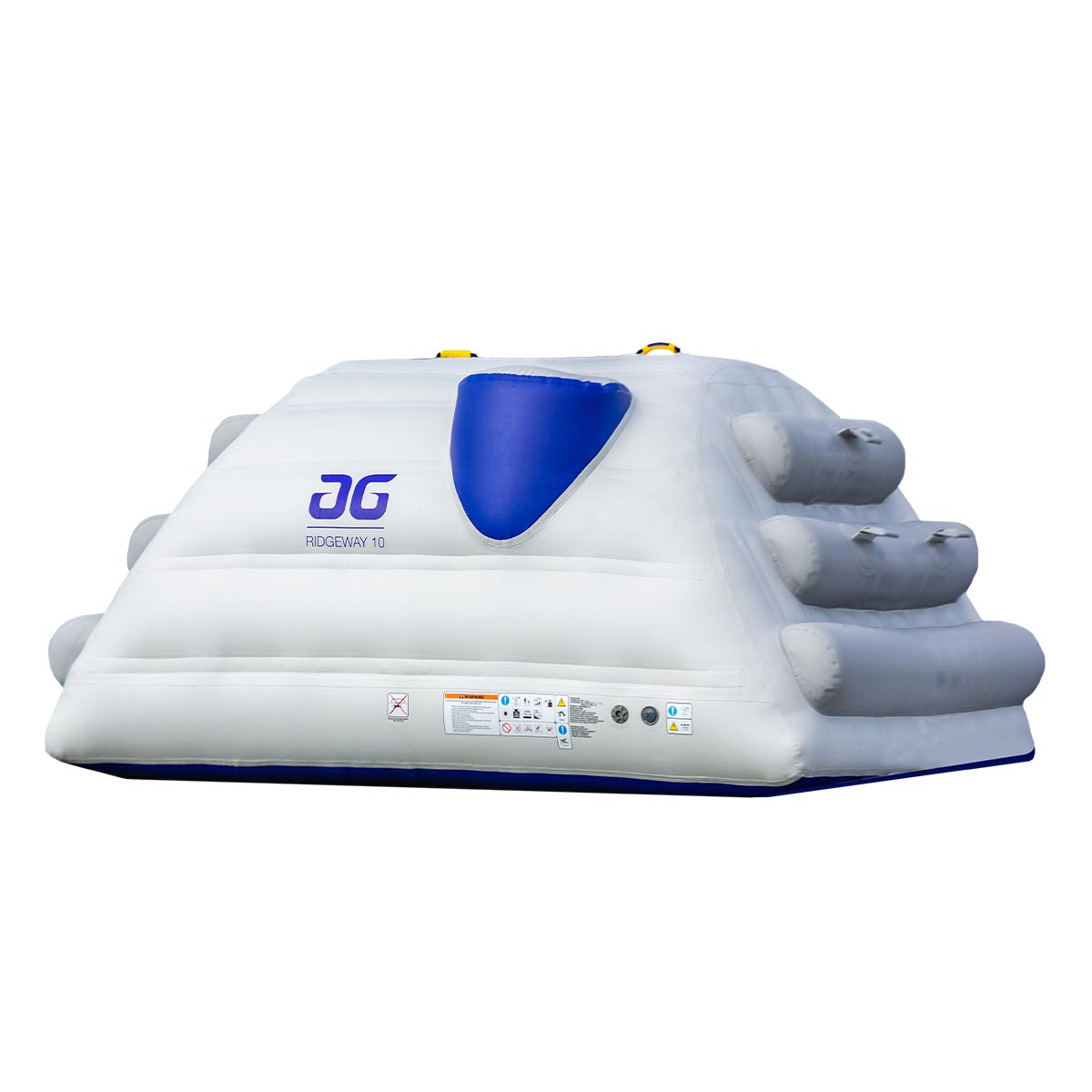

Aquaglide Ridgeway 10

TRACK FEATURE

Best for climbing, playing, jumping, balance in a 10-foot track feature.

Works with all Aquaglide Aquaparks or as a standalone feature.

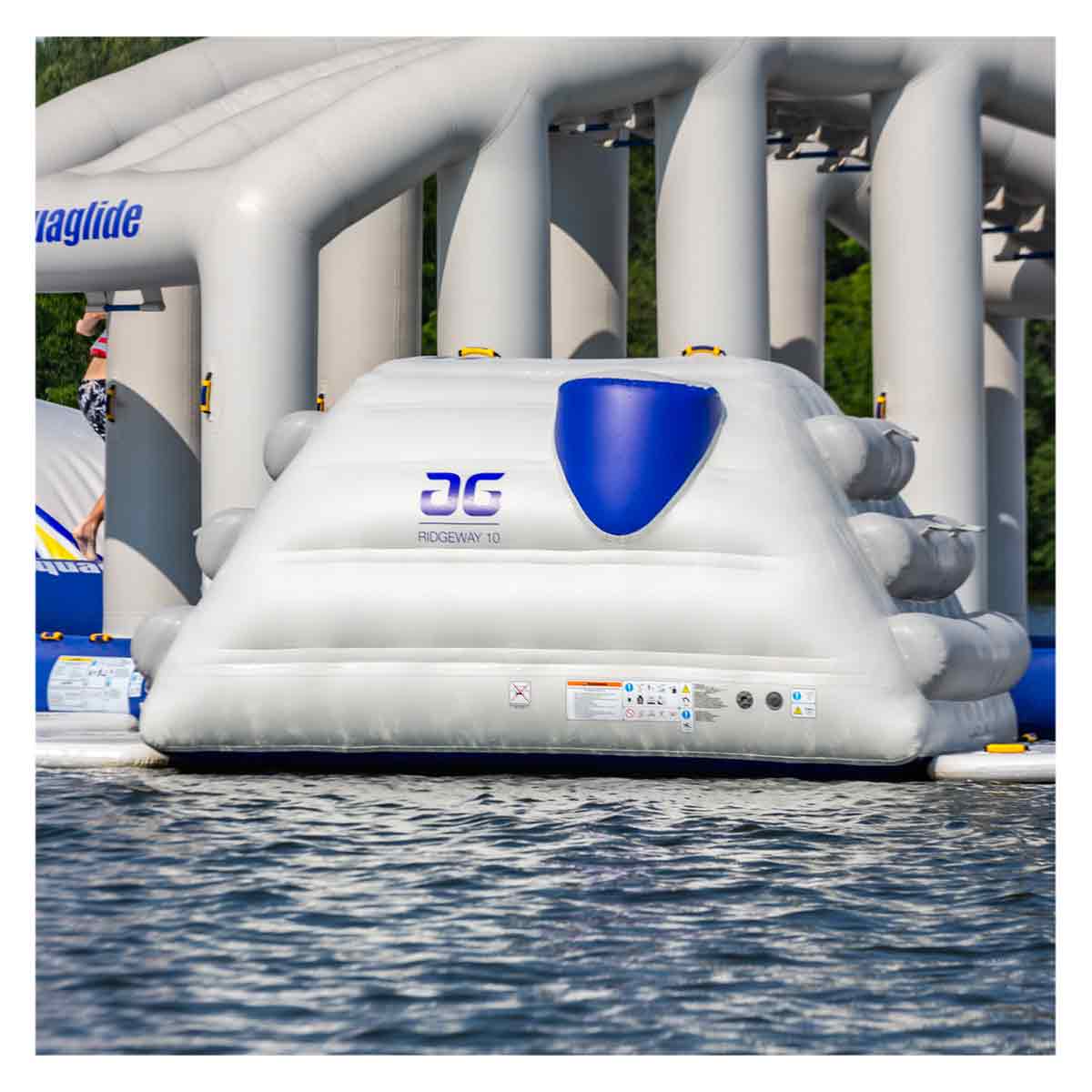

Ridgeway 10 is a track obstacle that brings its own style of climbing, jumping and balance to the 10-foot track footprint. A quick scramble up and over will get the job done, but once on top, the whimsical stump jumping platforms beg to be bounced, making this one of the most ‘session-able’ 10-foot features in the range. Used to promote continuous play as part of an aquapark track run, Ridgeway 10 connects to other Aquaglide features on 2 sides using the Interlock D-Ring system.

Aquapark Construction

• Double I-Beam: Extra-reinforced, welded double-I-Beam construction with 3-layer seams.
• Tubular: Integrates welded structural tube construction with 3-layer seams.
• Duratex Cx3: Premium commercial-grade material optimized for durability, weld strength and UV resistance in our signature items.
• Tritex Cx3: Uniquely textured version of our Duratex material adding grip and cooling attributes.
• Interlock 5: 2 sets of secure and tamper-free 5-ring connections using our 2-Step Vario Strap system.
• Halkey-Roberts valves: With tamper-proof cap for quick, effective inflation/ deflation.
• PRV: Pressure relief valve to help protect against catastrophic over-inflation.

User Features

• Climb: Two integrated novice climbing lines allow users to climb or descend.
• Jump: Two dedicated stump jumping stations add to the excitement.
• Bounce: Offers a bounce element to keep things lively.
• Balance: Includes a challenging balance element to keep users on their toes.
• Obstacle: Presents an obstacle challenge which adds to the fun.

Technical Specifications

• Max Weight: 400 lb. (181 kg) max weight.
• Capacity: 2 Adults / 2 Children
• Weight: 174.20 lb. 79 kg)
• Material: 0.90 mm / 31 oz Cx3 Duratex and Tritex
• Dimensions: 10’-0” L (305 cm) x 8’-0” W (244 cm) x 4’-11” H (150 cm).
• Minimum Required Water Depth: 5’4” (1.65 m)
• Minimum Distance from Shore: 10’ (3.0 m)
• Minimum Required Total Anchor Weight: 4,400 lb. (2,000 kg)
• Anchor Rings: 4
• Accessory Attachment D-rings: 5 each on 2 ends.
• Included: Ridgeway 10, cover, repair kit.
• Not Included: Anchor weights, mooring lines, Vario-Lock™ straps, and inflation pump.

Note: Weight recommendations are for anchoring in conditions with extreme weather, waves, or other abnormal conditions. Aquaglide recommends contacting a dock and mooring specialist for anchor installation options and assistance.

Warranty

3-year limited against any manufacturing defects.
